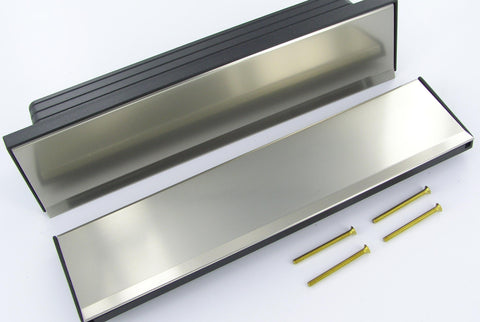

Axim LP-500 Letterplate Assembly
Axim LP-500 Letterplate Assembly
- Full 180 degree opening to outside flap for easy operation when fitted to the bottom rail of a door, or low stall riser.
- Fully weatherproofed outside flap, incorporating a unique drainage channel for optimum protection of mail.
- Adjustable spring tension, preset in factory for average requirements.
- Blind fixings concealed behind outer flap with rubber seal for quiet closing action.
- Integral sleeve for 45 mm door rails with 10mm cutting grooves, enabling easy adjustment down to 10 mm thick armour plate door or panel.
- All fixings are within the rectangular cut out area, eliminating the need for extra fixing holes.
- Letter plate sets with housing in black satin ABS durable plastic.
- All fixings in solid brass.
Finishes
- silver anodised
- dark bronze anodised

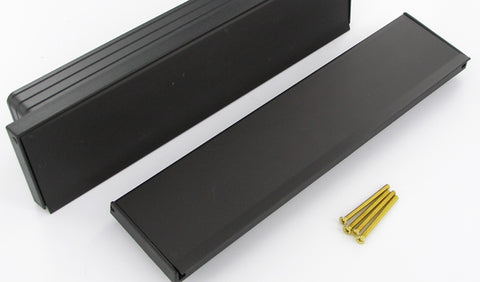

- black anodised

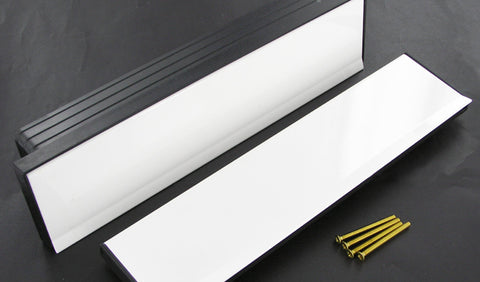

- white powder coat
- polished silver anodised
- mill finish (no finish designed to be powder coated)
Click here for fitting instructions
